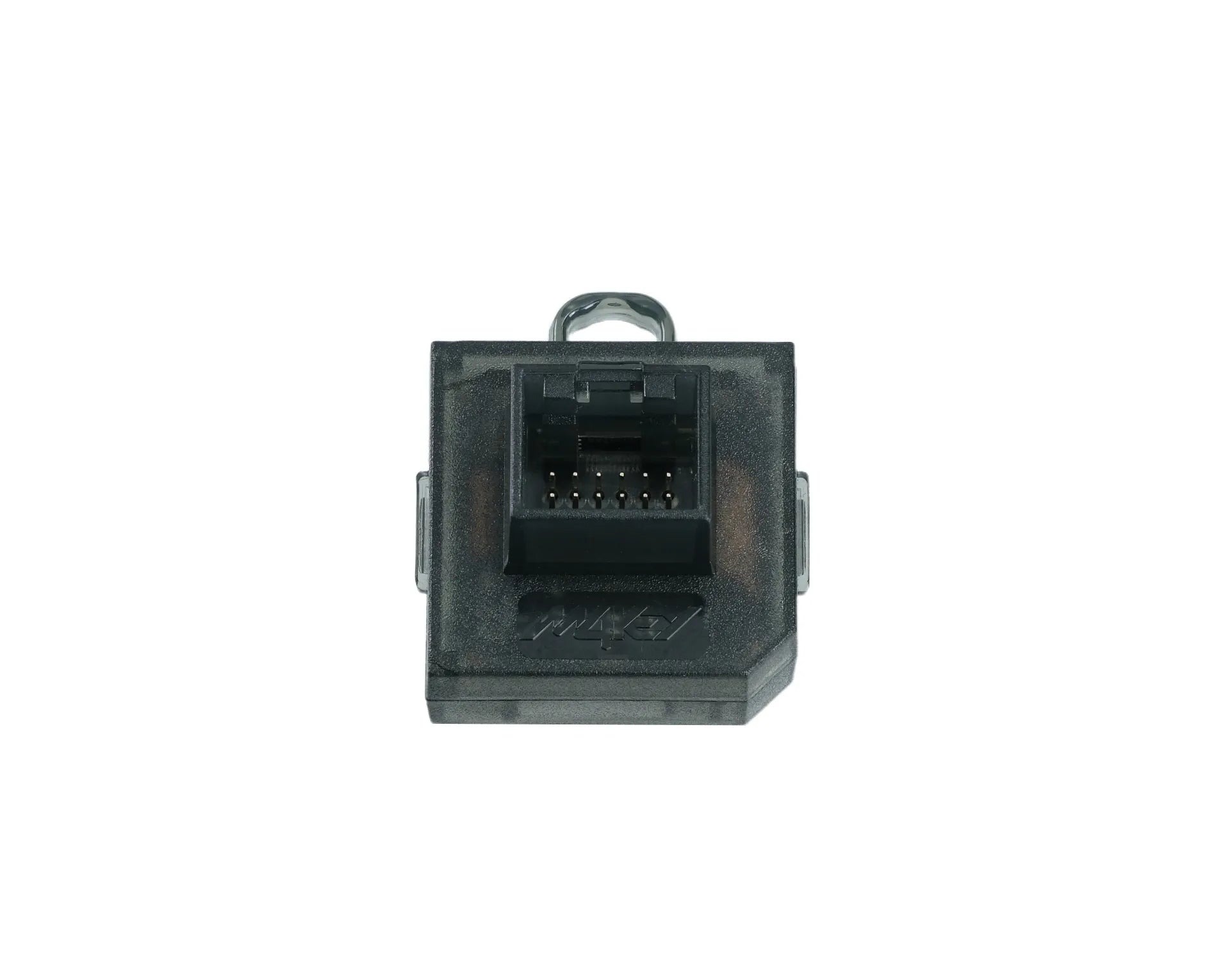

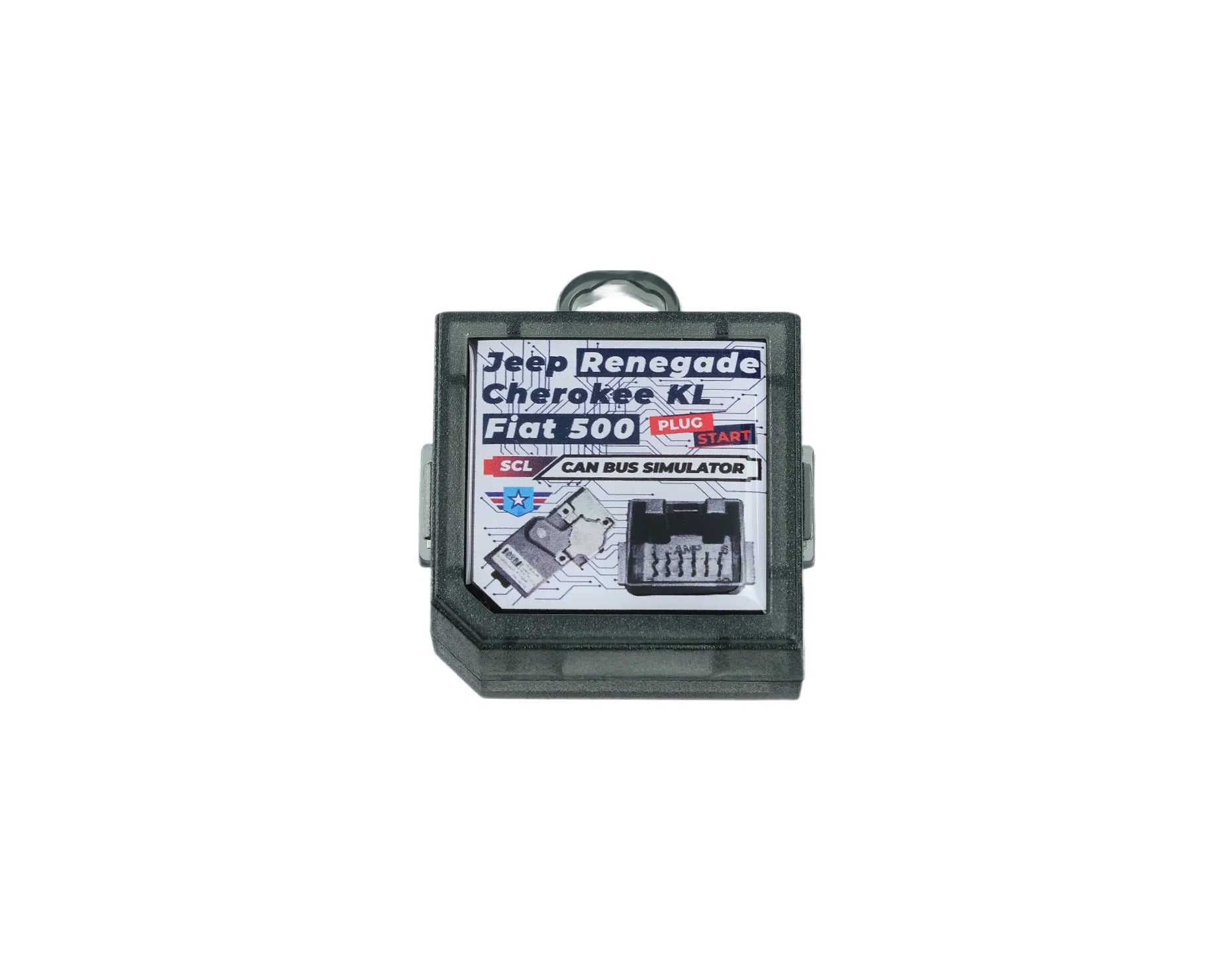

FCA EMULATOR
Steering lock emulator for FIAT 500, JEEP RENEGADE and CHEROKEE KL models.
Plug & play model - no programming required, but the original EEprom needs to be soldered.
LED behavior:
- Red flashing (without EEPROM)
- Green flashing (EEPROM empty)
- Flash green once (success)
Note
If you want to install the emulator on another vehicle, follow the following steps:
- Plug the emulator into the new car.
- Press the power button and the red LED will flash once.
- Disconnect the emulator.
- Solder the new car's EEPROM into the emulator.
- Plug the emulator back into the new car.
