Audi Elv Emulator - Esl

Audi Elv Emulator - Esl

SKU: EMU20

Compatible with:

AUDI A6 / Q7

View full details

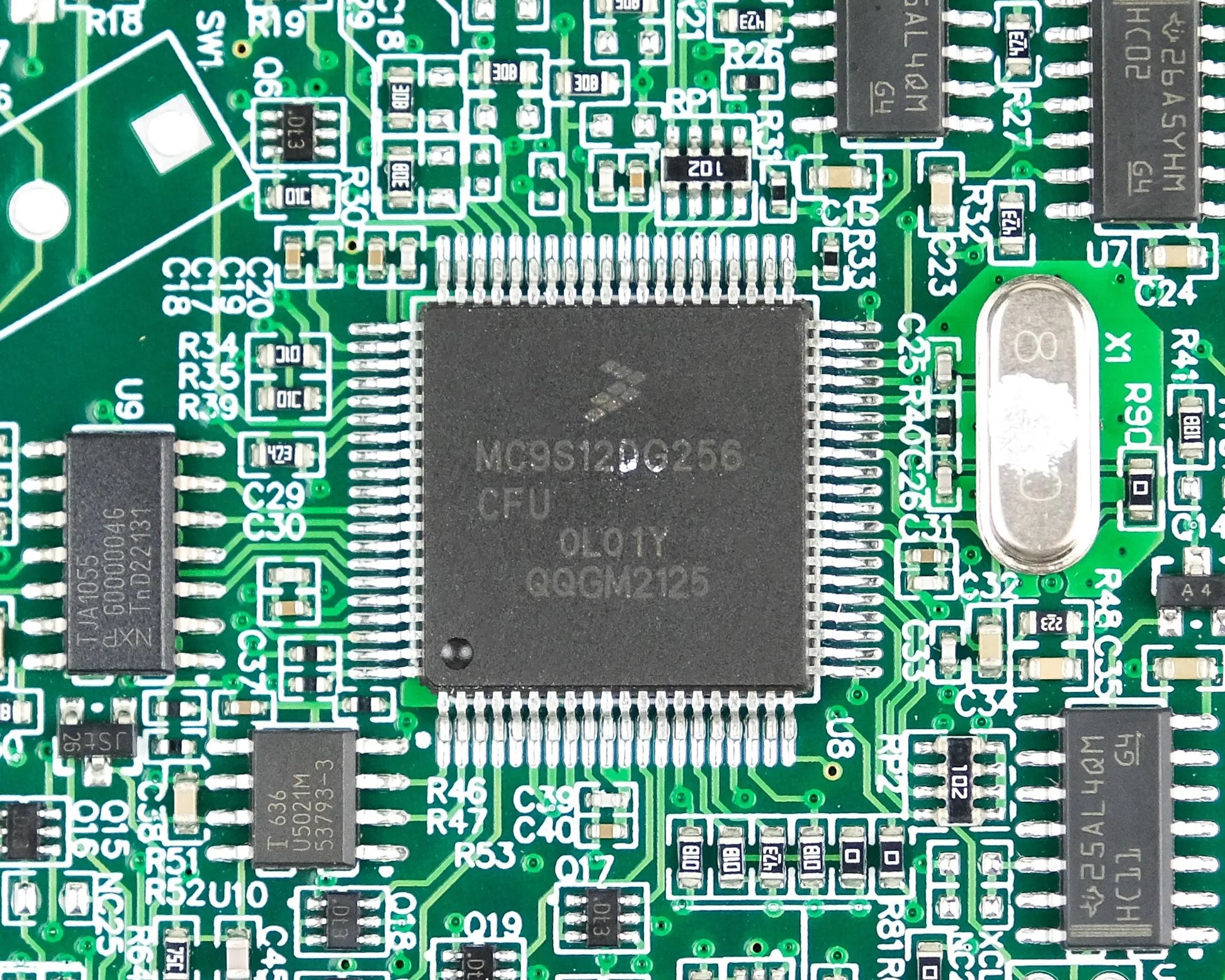

Universal solution: This emulator supports three types of MCUs used in J518 modules: 1L59W, 3L40K and 0L01Y.

Stable and Durable: The emulator has been designed for stability and durability, without including vulnerable components such as relays, microswitches and motors, which are often found in the original J518 module.

Easy to replace: The emulator can be easily replaced by writing the dump of the original J518 module using the VVDI PROG programming cable, without the need to solder cables.

Lock function: The emulator does not include lock or unlock function by default. If the same functionality provided by the original J518 module is required, a replacement J518 module will need to be purchased separately.

VVDI PROG Software: When using VVDI PROG software, users need to select only the "j518 (2010-) 0L01Y" option, regardless of the car model year.

Steps for change:

  • Read EEPROM data: Extract the EEPROM data from the original J518 module installed in your car (the emulator already contains flash data).
  • Write the data to the emulator: Enter the EEPROM data obtained in Step 1 into the emulator (if the MCU mask of the original J518 is 0L01Y, enter the EEPROM data obtained in Step 1 directly into the emulator.
