Mercedes Elv Emulator - Esl

Mercedes Elv Emulator - Esl

SKU: EMU19

Compatible with:

W204 / W207 / W212 / W176 / W246

View full details

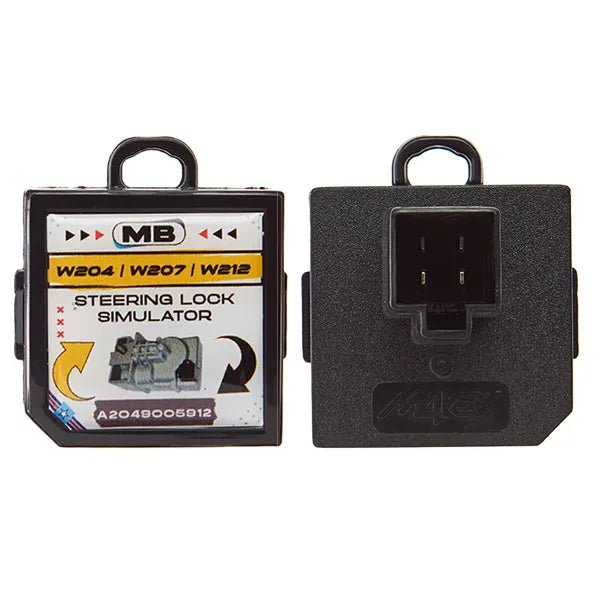

MERCEDES EMULATOR

Steering lock emulator for Mercedes, bodies W204 / W207 / W212 / W176 / W246.

Needs programming. Emulator compatible with:

  • Open AVDI
  • Xhorse VVDI MB Tool
  • Xhorse Keytool Plus
  • CGDI MB
  • DIAGSPEED
  • AUTEL / AURO

Instructions:

  • Disconnect the ESL/ELV cable from the car steering lock unit
  • If the vehicle's steering lock is in lock mode, the steering lock must be removed from the car
  • Calculate Mercedes EZS password using a Mercedes key programmer.
  • Mercedes ESL/ELV emulator programming must be done using a Mercedes key programming device
  • Connect the emulator to the car and start the car.

Mercedes Steering Lock Emulator Light Behavior:

  • After programming it, connecting it to the car or test leads, insert the car key into the switch.
  • If the light turns green, it means the programming was completed perfectly and the car is ready to start.
  • If the light turns red, it means that the programming procedures were not performed correctly or the key you are using does not belong to the same EZS
  • If the light does not turn on, you need to check the car's power supply or cables
