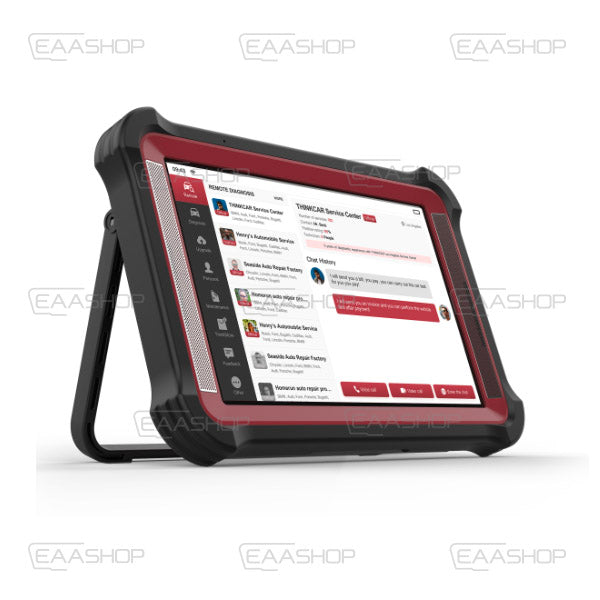

THINKTOOL X10 is a high-end intelligent remote video diagnostic equipment developed by THINKCAR. X10 supports both remote and traditional diagnostics, providing the industry's first dual diagnostic services.
Features
- OE functions available: reading and erasing “DTC” fault codes, reading and graphing actual values, actuator testing, all types of bidirectional controls, special functions and more.
- THINKLINK VCI compatible with J2534, CAN FD, DOIP, D-PDU, RP1210, J1708, J1939 and J1939/13.
- It also offers reset of 35 maintenance services. These shortcuts are focused on the most frequent tasks in the day-to-day work of the workshop, such as reestablishing the periodic maintenance notice, repositioning the brake cylinders, initializing the steering angle sensor, the battery, TPMS, regeneration of the “DPF” particulate filter, EGR learning, transmissions and more.
- Representation of the electronic architecture using an intelligent topological map.
Optional accessories
- License and connectors for heavy machinery
- THINKTOOL.Videoscope endoscopic camera
- THINKTPMS G1 RF transmitter/exciter.
- THINKWORKLIGHT flashlight.
- THINKTOOL thermal imaging camera. Thermal Imager
- THINKTOOL Oscilloscope.Scope Box
- Battery tester. THINKTOOL Battery Tester THINKEASY Battery Tester Tweezers
Accesorios
- 1 Thinktool X10
- 1 Cable de diagnostico
- 1 ThinkEasy Pinzas
- 1 Cable de mechero
- 4 Fusible (AC250V / 5A ⌀5*20mm)
- 4 Fusible (AC250V / 5A ⌀6*30mm)
- 1 Cable del cargador
- 1 NN - 14+16
- 1 Adatador OBD I
- 1 M/H - 12+16
- 1 BZ38
- 1 TA-22
- 1 TA-17
- 1 GN12
- 1 CR-6
- 1 B-20
- 1 FT-3
- 1 HA-3
- 1 Adaptador ThinkCar
- 1 Cargador
- 1 Cable de ethernet
- 1 Flayer con contraseña
- 1 Manual de usuario
- 1 Packing List
